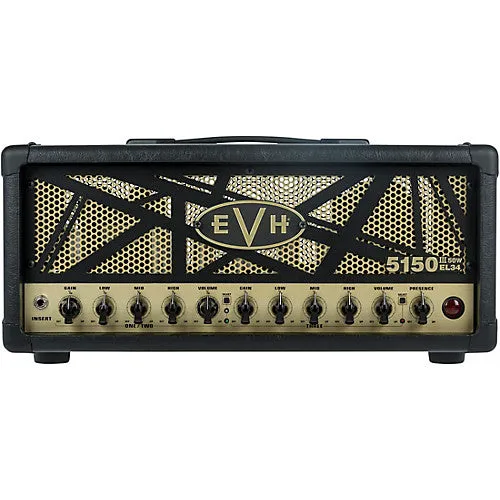

EVH 5150III 50W EL34 Amp Head

You Asked, EVH Delivered

Independent volume and gain control for all three channels has arrived with the 5150III® 50W EL34 head. Experience total control, along with the same lethal looks and ferocious EL34 tone of the 100-Watt head.

The EL34 power tubes deliver signature harmonic overtones, with more dynamic compression and saturation that evoke a more modern “British” sound, all with the sustain and versatility expected from EVH® 5150III® amps.
Channel one boasts a more sparkling and compressed clean tone, while channels two and three possess a slightly darker and compressed tone with even more saturation than before. Channels one and two each have dual concentric gain/volume controls, with shared EQ (low, mid, high), while channel 3 has an independent EQ. Other features include a rear-panel resonance control that tailors low-frequency response for all channels and a global presence control.

Wrapped in an elegant gold and black EVH motif, the EL34 50-watt head also is equipped with an effects loop, headphone jack, pre-amp out and midi-in.

General
Model Name:
5150III® 50W EL34, 120V
Model Number:
2253060000
Series:
EVH® 5150 III® Heads
Amplifier Type:
Tube
Color:
Black and Gold Motif
Electronics
Controls:
Channel 1: Independent Volume and Gain w/ Shared Low, Mid and High; Channel 2: Independent Volume and Gain w/ Shared Low, Mid and High; Channel 3: Independent Volume, Gain, Low, Mid and High EQ, with Global Presence and Resonance
Effects Loop:
1/4" - (Send/Return)
Inputs:
One - 1/4"
Headphone Jack:
1/4"
Line Out:
One - (1/4")
Channels:
Three
Rectifier:
Solid State
Voltage:
120V
Wattage:
50 watts
Hardware
Cabinet Material:
Birch Ply
Handle:
Molded Plastic Strap with Black Powder Coated Caps
Front Panel:
Gold Anodized
Control Knobs:
Chicken-Head Style Pointer
Tubes
Pre Amp Tubes:
7 x JJ ECC83S (12AX7)
Power Tubes:
2 x JJ EL34 Matched
Accessories
FootSwitch:
4-Button Footswitch Included
